Short Description:
YJPAS and YJPAT Series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.
• The wedge type clamp is self-adjusting.
• The Clamp is made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel.
| Item No. | Cross section(mm²) |
Messsenger DIA.（mm） |
Breaking load |
| YJPA25 | 2×（16-25） |
4-8 |
2 KN |
| YJPA25B | 2×（16-25） |
4-8 |
2 KN |
| YJPA25BS | 2×（16-25） |
6-10 |
2.5KN |
4-Cores Service Anchor Clamp PA25 Series
• The 4-cores anchor clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation
• No additional tools required.
• Standard: NFC33-042
| Item No. |
Cross section(mm²) |
Messsenger DIA.（mm） | Breaking load |

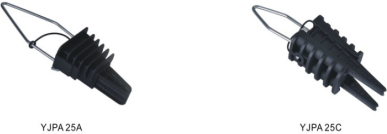

| YJPA25A |
4×（16-25） |
4-8 |
2 KN |
| YJPA25C |
4×（16-25） |
4-8 |
2 KN |
| YJPA25CS |
4×（4-35） |
4-10 |
2 KN |
Anchor Clamp PAR Series
The PAR series anchor clamp is designed for service line with 2 or 4 conductors.
• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation.
• No additional tools required.
• Standard: NFC33-042
| Item No. | Cross section(mm²) | Messsenger DIA.（mm） | Breaking load |
| YJPAR20 |
2×（16-25） |
10-16 |
2.5 KN |
| YJPAR21 |
2×4 -4×25 |
4-19 |
2.5 KN |
