Best quality Ftth Clamp - Malleable Iron WS Type Electric Power Fitting Line Eye Clevis Socket Clevis Pole – Yongjiu
Best quality Ftth Clamp - Malleable Iron WS Type Electric Power Fitting Line Eye Clevis Socket Clevis Pole – Yongjiu Detail:
WS Type Socket Clevis
WS type socket eye is used to attach ball and socket insulators to other associated hardware.
It is made of malleable iron or casting steel and hot-dip galvanized.
Cotter pins are stainless steel,
Security clip is bronze or stainless steel
The other parts are hot-dip galvanized steel.

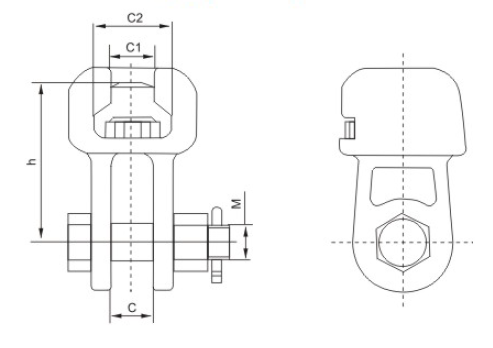

Item No. |
Suitable Insulator |
Dimension(mm) |
Socket IEC Code |
Rated Failure load(kN) |
Weight (Kg) |
||||
C |
C1 |
C2 |
M |
h |
|||||
WS-7 |
XP-7 |
18 |
19.2 |
34.5 |
16 |
70 |
16mm |
70 |
1 |
WS-10 |
XP-10 |
20 |
19.2 |
34.5 |
18 |
85 |
16mm |
100 |
1.2 |
WS-12 |
XP-12 |
24 |
19.2 |
34.5 |
22 |
85 |
16mm |
120 |
2.1 |
WS-16 |
XP-16 |
26 |
23 |
42.5 |
24 |
95 |
20mm |
160 |
2.6 |
WS-20 |
XP-20 |
30 |
27.5 |
51 |
27 |
100 |
24mm |
200 |
4.5 |
WS-21 |
XP-21 |
30 |
23 |
42.5 |
27 |
100 |
20mm |
210 |
4.3 |
WS-30 |
XP-30 |
36 |
27.5 |
51 |
36 |
110 |
24mm |
300 |
5.7 |
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT’S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT’S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
