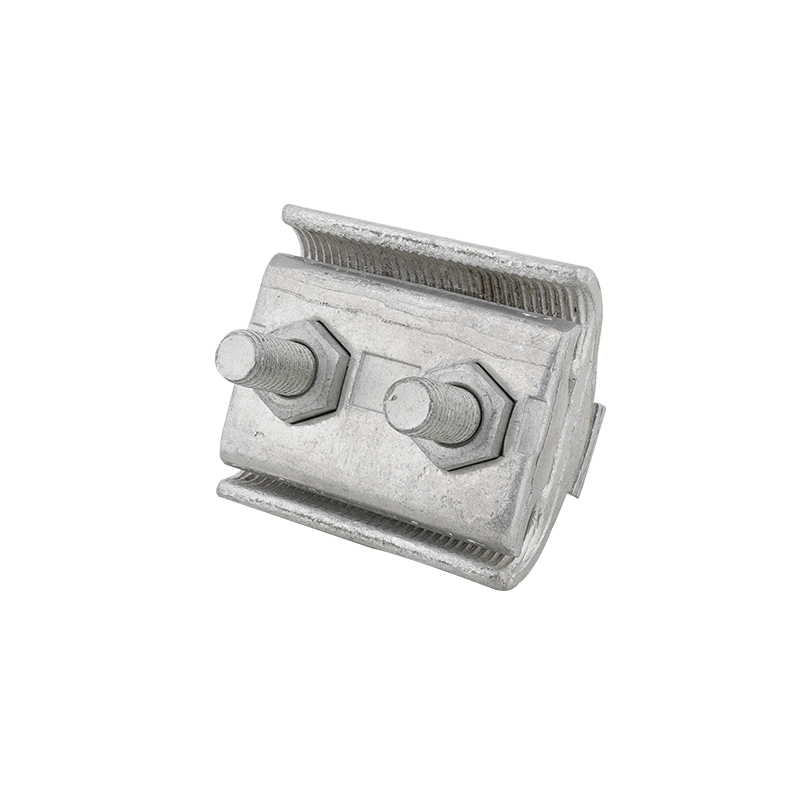

Aluminium APg Parallel Groove Connector
APG series aluminum parallel groove clamp is designed to connect two parallel bare aluminium conductors.
· Pressure pad ensuring uniform pressure along the clamp.
· Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact.
· Connector bodies are made of corrosion resistant, high strength aluminium alloy.
· Bolts and nuts made of hot dip galvanized steel.
|
Item No. |
Wire range(mm2) |
Main Dimension(mm) |
Bolts Qty. |
|||
|
AL |
L |
B |
H |
M |
||
|
APG-A1 |
16-70 mm2 |
25 |
42 |
40 |
8 |
1 |
|
APG-A2 |
16-150 mm2 |
30 |
46 |
50 |
8 |
1 |
|
APG-B0 |
6-35 mm2 |
30 |
36 |
40 |
6 |
2 |
|
APG-B1 |
16-70 mm2 |
40 |
42 |
45 |
8 |
2 |
|
APG-B2 |
16-150 mm2 |
50 |
46 |
50 |
8 |
2 |
|
APG-B3 |
25-240 mm2 |
63 |
58 |
60 |
10 |
2 |
|
APG-C1 |
16-70 mm2 |
60 |
42 |
45 |
8 |
2 |
|
APG-C2 |
16-150 mm2 |
70 |
46 |
50 |
8 |
3 |
|
APG-C3 |
25-240 mm2 |
90 |
58 |
60 |
10 |
3 |
|
APG-C4 |
35-300 mm2 |
105 |
65 |
70 |
10 |
3 |
