The buyer pleasure is our primary concentrate on. We uphold a consistent level of professionalism, excellent, credibility and service for Cheap price Pole/Tower Use Down Lead Clamp for Optic Fiber Cable, How about to start your great enterprise with our corporation? We’ve been prepared, qualified and fulfilled with pride. Let’s start our new business with new wave.
The buyer pleasure is our primary concentrate on. We uphold a consistent level of professionalism, excellent, credibility and service for China Clamp and ADSS, Our company absorbs new ideas, strict quality control, a full range of service tracking, and adhere to make high-quality solutions. Our business aims to “honest and trustworthy, favorable price, customer first”, so we won the trust of the majority of customers! If you are interested in our solutions and services, please do not hesitate to contact us!
SCS cable clamp

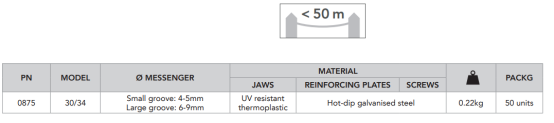

Product information:

This cable clamp enables fixed suspension applications for figure-8 copper cables with steel messenger on telecom access networks where spans do not exceed 50 meters.

Its unique and patented design has been developed to provide for a multi-purpose solution meeting the suspension needs on wooden, steel, concrete or composite poles.

The clamp consists of UV resistant thermoplastic jaws, reinforced with two galvanized steel plates and secured by two galvanized steel bolts.

Thanks to its straight and slightly curved grooves as well as to its reversible system, this clamp can be installed on figure-8 cables presenting messenger diameters 4 to 9mm.

messenger:

Small groove:4 to 5mm

Large groove: 6 to 9mm

FEATURES & BENEFITS

The clamp has two grooves to cover all messenger sizes from 4 to 9mm (outer sheath )

It can be installed on all types of poles with one pole band or one pole head bolt

The clamp’s thermoplastic insert enables the release of the suspended cable in the event of exceptional vertical over loads (falling tree, car crush,…), protecting thus the network’s integrity

Each steel reinforcing plate presents a ring eye at an extremity for hanging up a pulley during cable unrolling applications

The nylon parts provide a 4kV dielectric insulation between the cable messenger and the pole/clamp.

Q:CAN YOU HELP US IMPROT AND EXPORT?

Adss cable clamp

The buyer pleasure is our primary concentrate on. We uphold a consistent level of professionalism, excellent, credibility and service for Cheap price Pole/Tower Use Down Lead Clamp for Optic Fiber Cable, How about to start your great enterprise with our corporation? We’ve been prepared, qualified and fulfilled with pride. Let’s start our new business with new wave.
Cheap price China Clamp and ADSS, Our company absorbs new ideas, strict quality control, a full range of service tracking, and adhere to make high-quality solutions. Our business aims to “honest and trustworthy, favorable price, customer first”, so we won the trust of the majority of customers! If you are interested in our solutions and services, please do not hesitate to contact us!
