Insulated Spade Terminals
|
Item No. |
ANSI Bolt |
Bolt Hole Dia.d2(mm) |

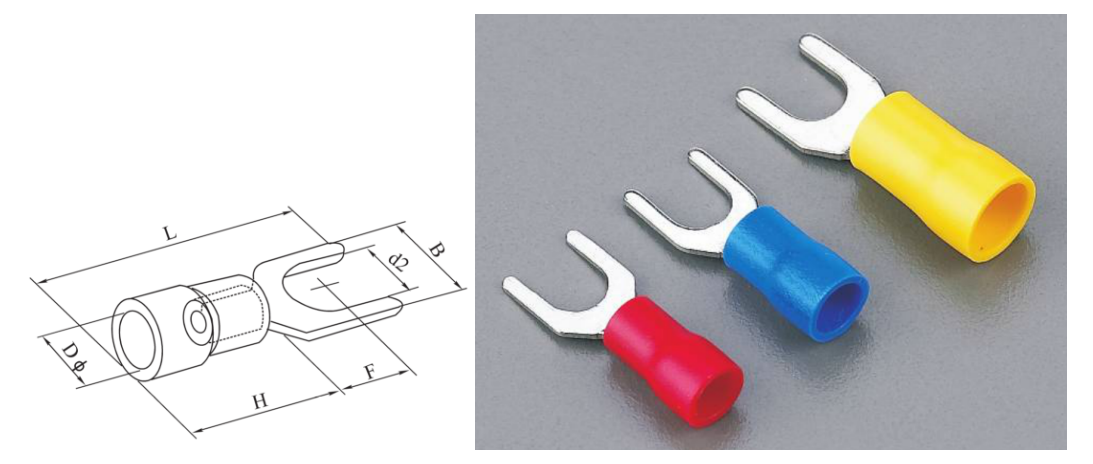

Dimensions |
Note |
||||
| B | L | F | H | D | ||||
| SV1.25-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 |
10.0 |
4.3 |
Size of cable:0.5-1.5mm2 (American standard22-16) Max.Current:Imax=19A Color:Red |
| SV1.25-3.5S | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SV1.25-3.5L | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SV1.25-4S | #8 | 4.3 | 6.4 | 21.2 | 6.5 | |||
| SV1.25-4M | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SV1.25-4L | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SV1.25-5S | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SV1.25-5L | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SV1.25-6S | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SV1.25-6L | 1/4 | 6.4 | 12.0 | 21.2 | 11.0 | |||
| SV2-3 | #4 | 3.2 | 5.7 | 21.2 | 6.5 |
10.0 |
4.9 |
Size of cable:1.5-2.5mm2 (American standard16-14) Max.Current:Imax=27A Color:Blue |
| SV2-3.5S | #6 | 3.7 | 5.7 | 21.2 | 6.5 | |||
| SV2-3.5L | #6 | 3.7 | 6.4 | 21.2 | 6.5 | |||
| SV2-4S | #8 | 4.3 | 6.0 | 21.2 | 6.5 | |||
| SV2-4M | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| SV2-4L | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| SV2-5S | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| SV2-5L | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
| SV2-6S | 1/4 | 6.4 | 9.5 | 21.2 | 6.5 | |||
| SV2-6L | 1/4 | 6.4 | 12.0 | 21.2 | 11.0 | |||
| SV3.5-4 | #8 | 4.3 | 8.0 | 24.8 | 7.0 |
12.5 |
6.2 |
Size of cable:2.5-4mm2 (American standard14-12) Max.Current:Imax=37A Color:Black |
| SV3.5-5 | #10 | 5.5 | 8.0 | 24.8 | 7.0 | |||
| SV3.5-6 | 1/4 | 6.4 | 12.0 | 28.0 | 12.1 | |||
| SV5.5-3.5 | #6 | 3.7 | 8.3 | 25.2 | 7.5 |
12.5 |
6.7 |
Size of cable:4-6mm2 (American standard12-10) Max.Current:Imax=48A Color:Yellow |
| SV5.5-4S | #8 | 4.3 | 8.3 | 25.2 | 7.5 | |||
| SV5.5-4L | #8 | 4.3 | 9.0 | 23.9 | 7.5 | |||
| SV5.5-5 | #10 | 5.3 | 9.0 | 23.9 | 7.5 | |||
| SV5.5-6S | 1/4 | 6.4 | 9.0 | 23.9 | 7.5 | |||
| SV5.5-6L | 1/4 | 6.4 | 12.0 | 31.2 | 12.0 | |||
| SV5.5-8 | 5/16 | 8.4 | 14.0 | 30.0 | 11.5 | |||
Brief Introduction:
1, cable lugs are suitable for the connection of copper conductors in power cable with electronic equipment
2, Material: They are made of higher 99.99 % pure copper tube T2.3, Working temperature -55oC-150oC
4, Surface: Tin-plated
5, Insulated material: PVC, nylon
6, Wire specification/rated: According customer required
7, Attribute: Pre-insulated, blade shape
Featuires of our products:
1. Long operating life and can easily operate.
2. Smooth surface spade.
3. Beautifully designed,blue,black,grey and red color can be chosen.
4. Orders can be accepted,sample is also could be provided.
