SC-2 Suspension clamps
AC-O-07-500 Dead End Clamp
Description:

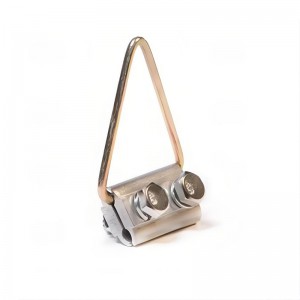

Optical fiber suspension clamp SC-2 designed to suspension round or flat ADSS or drop wire cable in FTTX construction.
Optical fiber drop wire suspension clamp is very easy for installation, and installation doesn’t require the additional tools. This type of FTTH clamp us handily adjusted.
Designed for suspension of self-supporting optical cable type “8″ on intermediate supports of overhead lines up to 20 kV, communications,
urban electrical facilities (street lighting, ground electric transport), elements of buildings and structures with a span length of up to 110 m.
|
Item No. |
Cable Diameter |
Material |
Breaking Load(KN) |
Weight(KG) |
|
SC-2 |
4-8mm |
Galvanized steel， Al-Alloy |
2KN |
85g |
Feature
1) Easy installation good conductivity
2) Forging process creates a high strength performance
3) Slotted holes allow adjusting for varying conductors on each side
4) high strength corrosion resistant Al-Alloy
5) Oxide inhibitor in contact surfaces avoid oxidation
6) Serrated transverse grooves for maximum conductor contact
7) Insulating covers is select-able for protection and insulation
INSTALLATION
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT’S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT’S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
