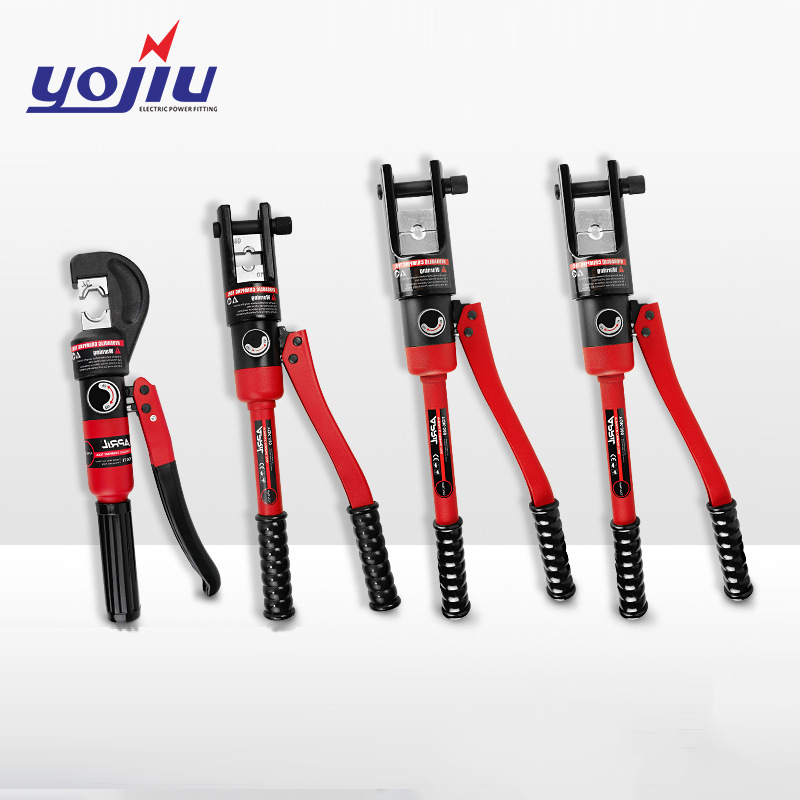

YQK series hydraulic crimping tool wire crimp lug pliers wire clamp press tool
| Type | Press-joint range(mm) | Max pressure(T) | Max travel(mm) | Turret tool disposition |
| YQK-120C | 102-1202 | 12 | 14 | 10,16,25,35,50,70,95,120 |
| YQK-300C | 162-3002 | 16 | 22 | 16,25,35,50,70,95,120,150,185,240,300 |
| YQK-300B/B | 352-3002 | 16 | 22 | 50,70,95,120,150,185,240,300 |
| YQK-240C | 162-2402 | 15 | 22 | 16,25,35,50,70,95,120,150,185,240 |
| YQK-400C | 162-4002 | 20 | 22 | 16,25,35,50,70,95,120,150,185,240,300,400 |
1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it’s uneasy to break out and turn hot .
2. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.
3. Standard die assembling 16,25,35,50,70,95,120,150,185,240,300mm2
4.Packing case is made form robust integarl plastic box.
Q:CAN YOU HELP US IMPROT AND EXPORT?
A:We will have a professional team to serve you.
Q:WHAT’S THE CERTIFICATES DO YOU HAVE?
A:We have certificates of ISO,CE, BV,SGS.
Q:WHAT’S YOUR WARRANTY PERIOD?
A:1 year in general.
Q:CAN YOU DO OEM SERVICE?
A:YES,we can.
Q:WHAT YOU LEAD TIME?
A:Our standard models are in stock ,as for big orders ,it take about 15 days.
Q:CAN YOU PROVIDE FREE SAMPLES?
A:Yes,please contact us to know the sample policy.
