Good Quality Aluminium Cable Clamp - YOJIU Electric Power Cable ABC Accessories Dead End Tension Clamp – Yongjiu Detail:

阿里巴巴详情介绍图

2-Cores Service Anchor Clamp PA25 Series

The 2-cores anchor clamp is used to fix the end of inside line, also suitable for insulated LV-ABC cable and multiple conductors.

•The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation.

• No additional tools required.

• Standard: NFC33-042

Item No. Cross section(mm²)

Messsenger DIA.（mm）

 Breaking load
YJPA25 2×（16-25）

4-8

 2 KN
YJPA25B 2×（16-25）

4-8

 2 KN
YJPA25BS 2×（16-25）

6-10

 2.5KN

4-Cores Service Anchor Clamp PA25 Series

•The 4-cores anchor clamp is designed for service line with 2 or 4 conductors.

• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation

• No additional tools required.

• Standard: NFC33-042

Item No.

Cross section(mm²)

 Messsenger DIA.（mm） Breaking load
YJPA25A

4×（16-25）

4-8

2 KN
YJPA25C

4×（16-25）

4-8

2 KN
YJPA25CS

4×（4-35）

4-10

2 KN

Anchor Clamp PAR Series

The PAR series anchor clamp is designed for service line with 2 or 4 conductors.

• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation.

• No additional tools required.

• Standard: NFC33-042

Item No. Cross section(mm²) Messsenger DIA.（mm） Breaking load
YJPAR20

  2×（16-25）

10-16

2.5 KN
YJPAR21

2×4 -4×25

4-19

2.5 KN

Anchor Clamp YJPC63

The YJPC63 anchor clamp is designed for service line with 2 or 4 conductors.

• The body is made of high-quality materials of high tensile strength and resistance to environmental effects and UV radiation

• No additional tools required.

• Standard: NFC33-042

Item No. Cross section(mm²) Messsenger DIA.（mm） Breaking load
YJPC63

  2×16-4×25

6-16

3 KN

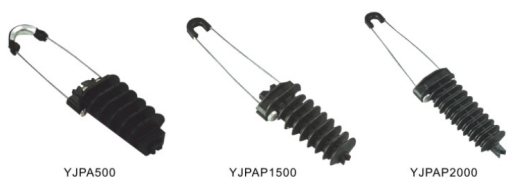

Dead End Clamp YJPAP Series

Item No.

Cross section(mm²)

 Messsenger DIA.（mm） Breaking load
YJPAP500

16-25

3-9

6 KN
YJPAP1500

50-70

11-14

10 KN
YJPAP2000

70-95

14-16

15 KN

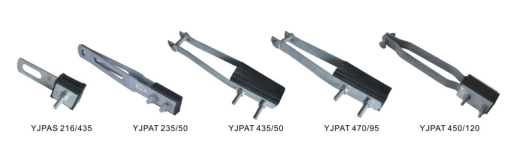

Clamp YJPAS And YJPAT Series

YJPAS and YJPAT Series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.

•The wedge type clamp is self-adjusting.

• The Clamp is made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel.

Item No.

Cross section(mm²)

 Messsenger DIA.（mm） Breaking load
YJPAS 216/435

2×16-4×35

4-11

4KN
YJPAT 235/50

2×(35-50）

8-11

15KN
YJPAT 435/50

4×(35-50）

11-14

15KN
YJPAT 470/95 4×(70-95)

14-16

40KN
YJPAT 450/120 4×(50-120)

11-17

40KN

Dead End Clamp YJRPA Series

YJRPA series dead end clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores.

•The wedge type clamp is self-adjusting.

• Clamp made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel

Item No.

Cross section(mm²)

 Messsenger DIA.（mm） Breaking load
YJRPA425/50

 4×（25-50）

7-12

20 KN
YJRPA450/120

  4×（50-120）

11-17

30 KN

全球搜详情_03
Q:CAN YOU HELP US IMPROT AND EXPORT?

A:We will have a professional team to serve you.

Q:WHAT’S THE CERTIFICATES DO YOU HAVE?

A:We have certificates of ISO,CE, BV,SGS.

Q:WHAT’S YOUR WARRANTY PERIOD?

A:1 year in general.

Q:CAN YOU DO OEM SERVICE?

A:YES,we can.

Q:WHAT YOU LEAD TIME?

A:Our standard models are in stock ,as for big orders ,it take about 15 days.

Q:CAN YOU PROVIDE FREE SAMPLES?

A:Yes,please contact us to know the sample policy.
